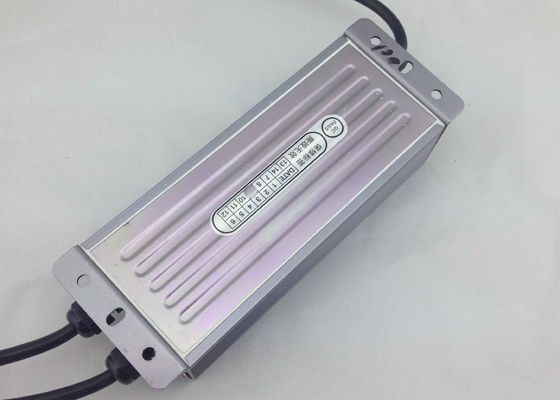

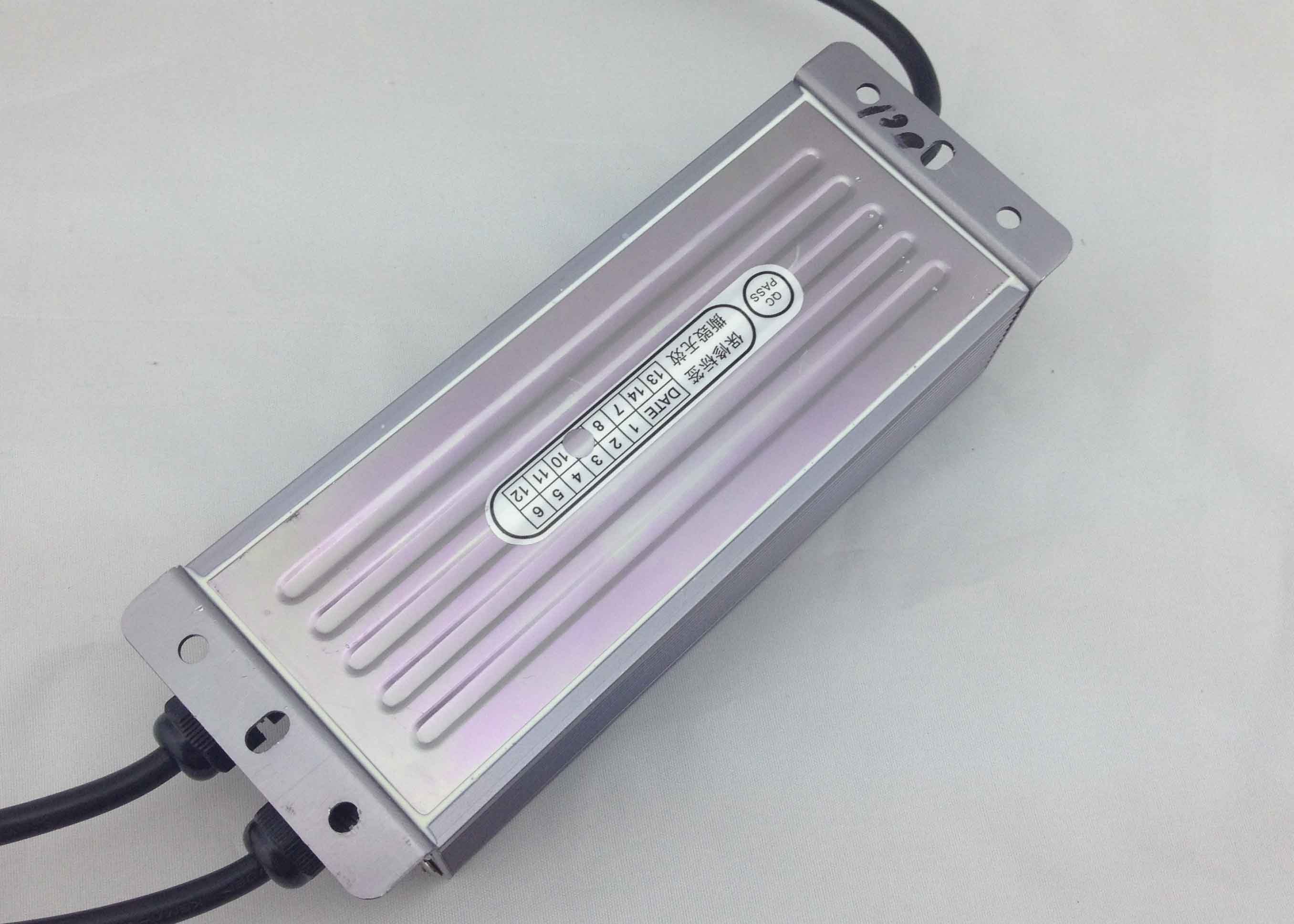

DC24V 100 W 8.3A Waterproof LED Power Supply With Ground Wire IP67

DC24V 100 W 8.3A Waterproof LED Power Supply With Ground Wire IP67

Quick Detail:

1. Short Circuit Protection,

when positive and negotive connect to each other,the power supply will switch off automaticaly,please check the system,and correcting the wiring,then switch  on the power again

2.Overload  protections,

please pay attection the total power of the system which you connect to the power supply,better loading the power supply with 90% of its rate power,Less loading will keep the power supply work for a longer time.

3. Rate Power: 100W

4. Waterproof IP67 CE ROHS

5. Input Voltage: AC90-130V/170-250V 50-60HZ

6. 2 YEAR’S Warranty

7. Customised Service

8. Output Voltage: DC12V / DC24V

9. High efficiency, low power consumption

10. Energy saving, environmentally friendly

Company Experience:

High quality,with competitve price,more than 7 years' exprience,speciallized in waterproof led drivers, more than 20 foreign customers which have cooperated with our company for more than 3 years.Small MOQ,helping you to cooperate with our company step by step.

100% full load age testing IP67 CE ROHS

Protections:

1. Short Circuit: protection mode(revocers automatically after fault condition is removed.) So,if your power supply not work,please wait for 30 seconds,then start it again.Maybe its self-protection worked.

2. Overload Protection

3. Overtemperature:Protection model(shut down output votlage,work again after re-started.

Environment:

Working Temperature: -30-50 Centigrades(refer to output load derating curve)

Working Humidity: 20-99% RH non-condensing(waterproof)

Safety & EMC

Safety standards: CE mark(LVD),IP67

Withstand voltage: Input--Output,1.5KVAC Input--GND:1.5KVAC

EMC test standards: EN55015:2006;EN61547:1995+A1:2000;

EN61000-3-2:2006; EN61000-3-3:1995+A1:2000;

EN61347-1:2001; EN61347-2-13:2006

Our main models:

Constant Voltage(Iron Shell):

DC5V/12V/24V,10W,15W,20W,30W,40W,60W,80W,100W,120W,150W and 200W

Constant Current:

30V330mA,36V330mA,60V330mA,80V330mA,110V330mA,45V580mA,36V700mA.......

Waterproof Plastic Shell:

DC12V/24V 10W,20W,30W,40W.......

OEM and ODM Services are available !! MOQ: 1000PCS

Applications:

1. Power For led strips,led modules,led pixel lights,

2. Power For outdoor lamps,led street lamps,led downlight,led flood light and so on

3. Power For CCTV,

4. Office lighting, Artwork lighting, Display case

5. Home lighting

6. Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.

7. Hotel, Restaurant lighting

8. Other public lighting

Competitive advantages:

1. We have more than 7 years’ experience in producing led power supply,
2. We have more than 20 foreign customers Who have kept purchasing from our company more than 3 years.
3. Compared to our factories,same price,we have the better quality;same quality,we have the cheaper price.
4. Small MOQ, Short delivery time,2 years’ warranty.

5. Excellent management and technology QC Depa.aftersale team,we can do high technology

    aftersale service.good quality products.

6. Prompt response to your request,

7. Short delivery,

8. Reliable warranty

9. OEM/ODM

10. XINHE brand get the good repulation from all over the world
