جزئیات محصول
محل منبع: گوانگدونگ ، چین
نام تجاری: Miracle Bean
گواهی: CE ROHS
شماره مدل: XH-100W-12
شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش: 50 عدد
قیمت: negotiate
جزئیات بسته بندی: کارتن یا چوبی
زمان تحویل: 5-15 روز
شرایط پرداخت: T/T ، Western Union
قابلیت ارائه: 50000 قطعه در ماه
1ولتاژ ورودی: |
200-220 ولت AC |
2دمای کار: |
-20 ℃ ~+60 ℃ |
3رتبه IP: |
IP67 |
4کارایی: |
93.5٪ |
5درجه IP: |
IP65 |
6نام مورد: |
X-100W |
7محافظت بیش از ولتاژ: |
بله |
8PCB: |
با هم |
9بسامد خروجی: |
43-60 هرتز |
10امتیاز ضد آب: |
IP67 |
11رطوبت نسبی کار: |
20-90٪ Rh |
12بسته بندی: |
10pcs/ctns |
13منبع نور LED: |
درایور جریان ثابت |
14اندازه: |
206*37*22 میلی متر |
ولتاژ ورودی: |
200-220 ولت AC |
دمای کار: |
-20 ℃ ~+60 ℃ |
رتبه IP: |
IP67 |
کارایی: |
93.5٪ |
درجه IP: |
IP65 |
نام مورد: |
X-100W |
محافظت بیش از ولتاژ: |
بله |
PCB: |
با هم |
بسامد خروجی: |
43-60 هرتز |
امتیاز ضد آب: |
IP67 |
رطوبت نسبی کار: |
20-90٪ Rh |
بسته بندی: |
10pcs/ctns |
منبع نور LED: |
درایور جریان ثابت |
اندازه: |
206*37*22 میلی متر |

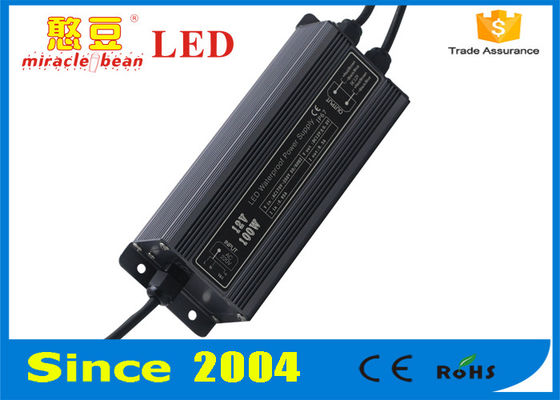

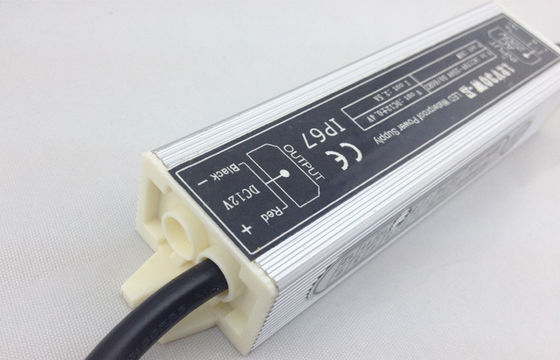

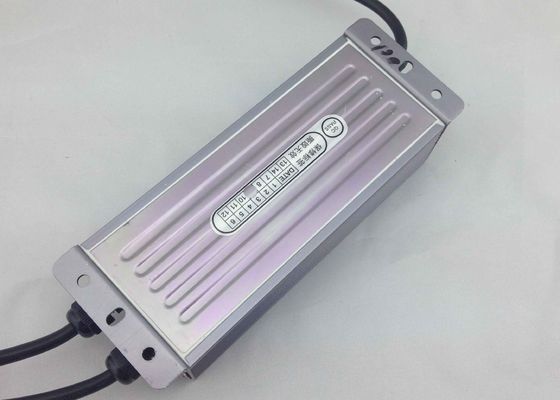

IP67 Waterproof Constant Voltage LED Driver Waterproof 12V 100W LED Switching Power Supply
Product Description
Model |
XH-FY100W-120-1 |
|
DC output voltage | 12V | |
Rated output current | 33.3A | |
Output current range | 0~33.3A | |
Ripple and noise | 180mVp-p | |
DC output power | 100W | |
Efficiency | 93.5% | |
Input voltage |
200-240VAC |
|
Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing(waterproof) | |
Store temperature and humidity | -40~+85centigrades 10-95% RH | |
Weight | 1.35kg | |
Input frequency | 60Hz |
Product Advantages of Power Supplies
1. Stable Output: Delivers consistent voltage and current, effectively protecting connected devices from damage caused by power fluctuations.
2. High Efficiency: Boasts high energy conversion rate (often 85%+), reducing energy waste and lowering overall operating costs.
3. Wide Compatibility: Works with various input voltages (e.g., 100-240V AC) and supports multiple device types, meeting diverse usage needs.
4. Reliable Protection: Equipped with over-voltage, over-current, short-circuit, and over-temperature protection, enhancing safety and durability.
5. Compact & Portable: Small in size and light in weight, saving installation space and facilitating easy movement or carrying.
Our Advantages
Our Services
FAQ
2. Q: How long is the warranty period?
A: 2 Years
3. Q: How long is the delivery time?
A: For sample orders, we can send out the products as soon as we get the payment; For big orders, usually the delivery time is within 7 working days;OEM and ODM orders, within 15 working days.
Product Show
