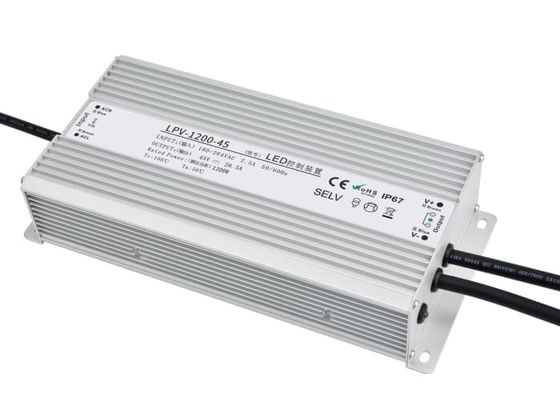

Waterproof LED Power Supply 1200W with Variable Voltage Aluminum Alloy Shell and Multiple Protections
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| کلاس IP | IP67/IP65 | نام موارد | منبع تغذیه LED |
|---|---|---|---|
| ماده پوسته | آلیاژ آلومینیوم | دمای عملیاتی | -20 درجه سانتیگراد تا 60 درجه سانتیگراد |
| اندازه محصول | 265*120*56mm | گواهینامه ها | CE/FCC/ROHS |
| توان خروجی | 1200W | رنگ | نقره ای |
| حفاظت | مدار کوتاه/بیش از دما/بیش از بار | کارایی | 94 ٪ |
| برجسته کردن | Variable Voltage LED Power Supply,Aluminum Alloy Shell LED Driver,Multiple Protections Waterproof Power Supply,Aluminum Alloy Shell LED Driver,Multiple Protections Waterproof Power Supply |
||
توضیحات محصول
Factory IP67 1200W Waterproof LED Driver Single Output DC12V 24V 36V 48V Variable Power Supply
Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver
Product Specifications
| Model | XH-LPV-1200W |
|---|---|
| Output current range | 24V/36V/48V/60V |
| DC output power | 1200W |
| AC Input Current | 7.5A/230VAC |
| Store temperature and humidity | -40~+85° 10-95% RH |
| Working temperature and humidity | -20~+60°C 20-90% RH non-condensing (waterproof) |
| Dimension | 265×120×56mm (L×W×H) |
| Efficiency | 94% |
| Weight | 2.75kg |
Product Description
The XH-LPV-1200W series is a waterproof AC-DC LED driver featuring constant voltage and constant power output, engineered to accommodate an AC input voltage range of 180V to 264V. It provides flexible output voltage options, namely 24V, 36V, 48V, and 60V.
Boasting a conversion efficiency of up to 94% and a fanless design, the driver utilizes natural air cooling for operation, maintaining a case temperature between -20℃ and +60℃. Its metal housing and high IP rating (IP65/IP67) enable seamless use in both indoor and outdoor environments. Additionally, it integrates a 105℃ long-life aluminum electrolytic capacitor to boost reliability.
Equipped with full-range protection functions and 5G vibration resistance, the XH-LPV-1000W complies with safety standards such as UL1012 and EN60950-1, while meeting the energy-saving requirements of next-generation LED lighting. As a cost-effective solution, it is suitable for a wide range of LED lighting applications.
Key Features
- AC Input Voltage: Covers a range from 180VAC to 264VAC
- Output Mode: Compatible with both constant voltage and constant power operation modes
- Protection Functions: Integrated with multiple safety protections, including short circuit, overload, overvoltage, and overtemperature protection
- Cooling Method: Adopts natural air convection for heat dissipation
- Housing Design: Features an aluminum housing with a fully protective structure
- Protection Standard: Utilizes a full potting process, complies with IP65/IP67 protection levels, and is suitable for indoor and outdoor installation
- Applicable Environment: Suitable for dry, humid, and rain-exposed environments
- Quality Testing: Subjected to 100% full-load burn-in testing before delivery
- Core Advantages: Delivers high efficiency, long service life, and excellent reliability
- Warranty Service: Supported by a 3-year quality warranty
Company Advantages
- We have more than 20 years' experience
- More than 100 foreign customers which have cooperated with our company for more than 3 years
- Small MOQ, helping you to cooperate with our company step by step
- Warranty: 3 years warranty, as soon as we confirm the defective products, we will give new ones to customers in the following order
- Solving the problems for customers directly
Our Services
- Replied in 24hrs
- Answer all your enquires in fluent English
- OEM & ODM are welcome
- Distributorship are offered for your unique design and some our current models
- Protection of your sales area, ideas of design and all your private information
- Provide lifelong warranty
- Fast delivery time: We will keep stock for some quantity of products; For samples orders, we can send out the products as soon as we get the payment; For big orders, usually the delivery time is within 7 working days; OEM and ODM orders, within 15 working days
Frequently Asked Questions
Q: Why do you choose us?
A: With over 20 years of experience in designing and manufacturing LED products for global customers, we provide custom LED solutions with free design services. Equipped with our own factory and an R&D team, we are capable of meeting the diverse needs of our clients.
Q: Can I have a sample order for LED Power Supply?
A: Certainly, we welcome sample orders for quality testing and verification. Mixed samples are also acceptable.
Q: Do you have any MOQ limit for LED Power Supply orders?
A: We offer a low MOQ, and even 1 piece is available for sample inspection.
