100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
جزئیات محصول
| مورد | منبع نور نقطه ای LED آدرس پذیر DMX512 | مدل | XH-G10021P24 (RGBW) -D1A |
|---|---|---|---|
| اندازه | 100 میلی متر | منبع نور LED | SMD3535 |
| تراشه LED | 21 عدد | قدرت | حداکثر 5.8 وات |
| ولتاژ ورودی | DC 24 ولت | پروتکل کنترل | DMX512 |
| رنگ | RGBW | زاویه پرتو | 160 درجه |
| رتبه بندی IP | IP67 | طول سیم | 120 میلی متر استاندارد (قابل تنظیم) |
| دمای کاری | -20 ℃ ~+60 ℃ | طول عمر | 50000 ساعت |
| گارانتی | 2 سال | نوع نصب | سطح نصب شده |
| برنامه | نورپردازی نمای ساختمان در فضای باز | ||
| برجسته کردن | DMX512 Addressable RGBW IC Control,1.5W SMD3535 Point Light Source,30mm IP67 Outdoor LED Pixel |
||
توضیحات محصول
100mm IP67 DMX512 Addressable RGBW LED Point Light SMD3535 24V for Building Facade Outdoor Lighting
Professional DMX512 addressable LED point light source featuring SMD3535+IC chipset with 4 high-brightness LED beads, 16.7M RGBW colors, and 65536-level grey scale for ultra-smooth color transitions at 30fps. IP67 waterproof rated with UL certified 2220 copper wire for permanent outdoor architectural lighting installations.
Technical Specifications
| Model | XH-G10021P24(RGBW)-D1a |
|---|---|
| Size | 100mm |
| LED Light Source | SMD3535 |
| LED Chip Quantity | 21pcs |
| Rated Power | Max 5.8W |
| Input Voltage | DC 24V |
| Control Protocol | DMX512 |
| Pixel Per Channel | 5 |
| Color | RGBW |
| Beam Angle | 160° |
| IP Rating | IP67 |
| Working Temperature | -20℃ ~ +60℃ |
| Wire Length | 120mm Standard (Customizable) |
| Life Span | 50000 Hrs |
| Warranty | 2 Years |
Key Features
- RGBW Colors: 65536-level grey scale per channel delivers cinematic-quality color depth and smooth transitions
- SMD3535+IC Integrated Chipset: Built-in driver IC reduces external component count and simplifies wiring
- 21 High-Brightness LED Beads: Delivers max 5.8W output with excellent luminance for outdoor visibility
- IP67 Waterproof Rating: Fully sealed for permanent outdoor installation in rain, snow, and extreme environments
- Wide Operating Range: Functions reliably from -20℃ to +60℃ for global deployment
- 120mm Standard Wire with Customization: Default 120mm wire length adaptable to project-specific requirements
Applications

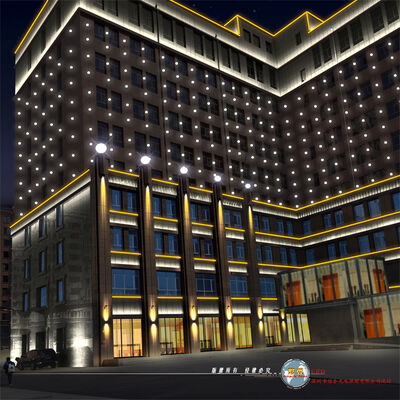

- Building Facade Lighting and Media Facades
- Bridge and Landmark Architectural Illumination
- Commercial Plaza and Shopping Mall Decorative Lighting
- Theme Park and Entertainment Venue Dynamic Displays
- Stage Backdrop and Large-Scale Grid Screens
- Outdoor Bar Screens and Mesh Display Systems
Our Services
- Guaranteed 24-hour response time
- Comprehensive English communication for all inquiries
- OEM & ODM services available
- Distributorship programs for proprietary designs and select standard models
- Structured protection of sales territories, design IP, and confidential data
- Lifelong technical support commitment
- Optimized delivery framework: Stock models dispatched immediately, samples shipped upon payment, bulk orders fulfilled within 7 business days, custom projects within 15 business days
Trade Details
| Payment Methods | T/T, Western Union, Paypal, L/C |
|---|---|
| Port | Shenzhen |
| Delivery Time | 3-5 days for stock models; 7 working days for bulk orders; 15 working days for OEM/ODM orders |
| Packing | Packed in carton |
| Shipping | By air, by sea, express are supported |
